Icemedal High Efficiency 22.5kw 10 Ton Ice Block Making Machine Commercial

Ask Lasest Price
Brand Name :	ICEMEDAL
Certification :	CE
Supply Ability :	30 Set/Sets per Month
Price :	$21,000.00 - $66,000.00/sets
Model Number :	BBI 8
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :	≤1 Set 35 Days

Add to Cart

Product Details
Company Profile

Icemedal High Efficiency 22.5kw 10 Ton Ice Block Making Machine Commercial

icemedal 10 Tons Per Day 22.5kw commercial Block Ice Making Machine

Product Description

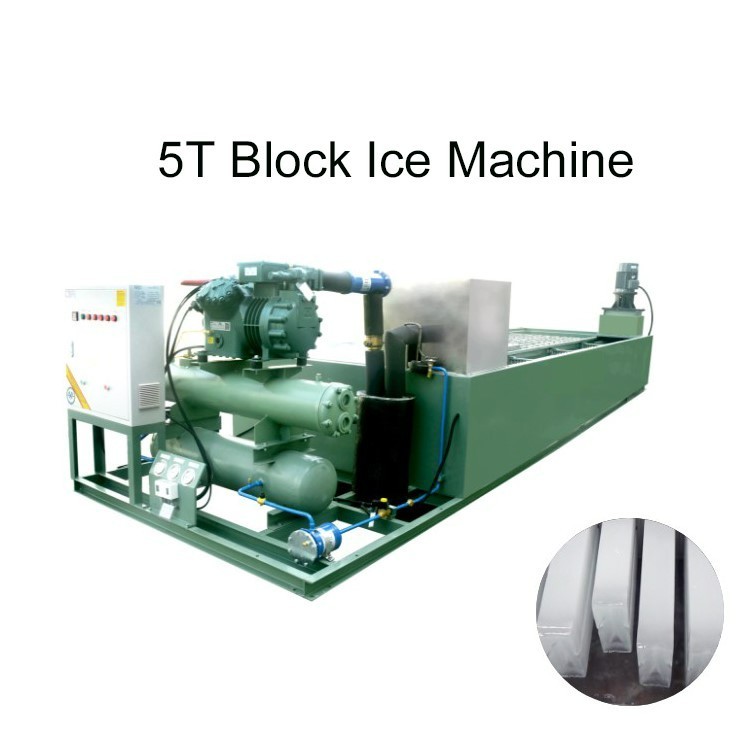

ICEMEDAL Series Block Ice Machine is the SECOND GENERATION ice block machine developed by ICEMEDAL, adopting coil pipe evaporator. For its high efficiency, low power consumption and more “fool” typed installation, the ice block machine has enjoyed its popularity around the world.

Product Parameters

Model	Daily Output (T/24h)	Cooling method	Compressor Power	Fan Power for Cooling Tower	Cooling Pump Power	Unit Size (LWHmm)
BBI1	1	Air/water	3 kw	0.18 kw	1.1 kw	26001400830
BBI2	2	Air/water	6 kw	0.37 kw	1.5 kw	36001700795
BBI3	3	Air/water	9 kw	0.56 kw	1.5 kw	43201670795
BBI5	5	Air/water	15 kw	0.75 kw	2.2 kw	6690*1880800
BBI8	8	Air/water	22.5 kw	1.5 kw	4 kw	849020001370
BBI10	10	Air/water	37.5 kw	1.5 kw	4 kw	636037101565

* Operating conditions: T (water supply):20℃, T (ambient): 32℃, T (condensing): 38℃, T (evaporating): -20℃.
* The final interpretation of the above mentioned parameters is in Icemedal, there will be no further notice, if there is any technical change.
* Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.
* Compressor brand: Bizter / Hanbell; Refrigerant: R22/R404A.
* Power supply: voltage 380 V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately)

Product Advantages

1.Auto water adding, ice making and ice harvest. No need salt water.

2.Short and fast ice freezing time. Sanitary, clean and edible ice blocks. Slow ice freezing, the ice can be 100% transparent.

3. Agitator makes the brine flowing faster, so that shorten the ice frozen time and improve the refrigeration effect of the whole machine. And agitator is much harder to be broken than water pump.

4.Compact structure design, can save installation space and shipping costs for you; Perfect and special water-lock technology. Very strong framework, not easy to deform.

5.Ice bed can be movable or motor driven. Using a motor-driven automatic screw rod lifting system.

6.High Power Efficiency Coil pipe evaporator is the key to improve the cold exchange, so the refrigerating efficient is increased.

Application

Block ice are large, store more cold, are melt resistant and low cost. The size of the ice blocks can be customized according to the size of the ice bucket.
Block ice can also be crushed according to different usage requirements, and the crushed ice can be used in all industrial locations.

Icemedal High Efficiency 22.5kw 10 Ton Ice Block Making Machine Commercial

1. Ice factory of the ports and docks

2. Food preservation

3. Distance transportation
4.Special areas of cooling

5. Cooling,
6. Fishery
Book Your Size Weight of block ice: 2.5kg,5kg, 10kg, 20kg…100kg, can be customized

Our Project

Icemedal High Efficiency 22.5kw 10 Ton Ice Block Making Machine Commercial
Packaging

1.Standard wooden case for packing main frame of block ice machine. Containerized design no need packing.
2.Cutomer only need prepare power and water for running the machine.
3.Machine installed completely and strictly tested in our factory before shipping.
5.Completely machine: ice machine, cooling tower, water pumps, water pipes, water pipe fittings.

Our Company

FAQ

1.Q: How often does the ice block machine add salt?

A: The salt water concentration is tested every 2 weeks (22-25 Baume degrees). When the concentration is lower than the standard concentration, salt needs to be added, because ice film will take away a part of the salt water. Generally, add salt once every 3 months. o electricity and water.

2.Q: The ice block machine for sale tests the pH once a month?

A:PH value between 7-8

3.Q: What’s the deliver time of your machine?

A:1~5ton, 30 days since the deposit arrived at our account, 5~20 ton, 45 days. (based on the electricity 380V/50Hz/3p, some special design lead time will be longer
