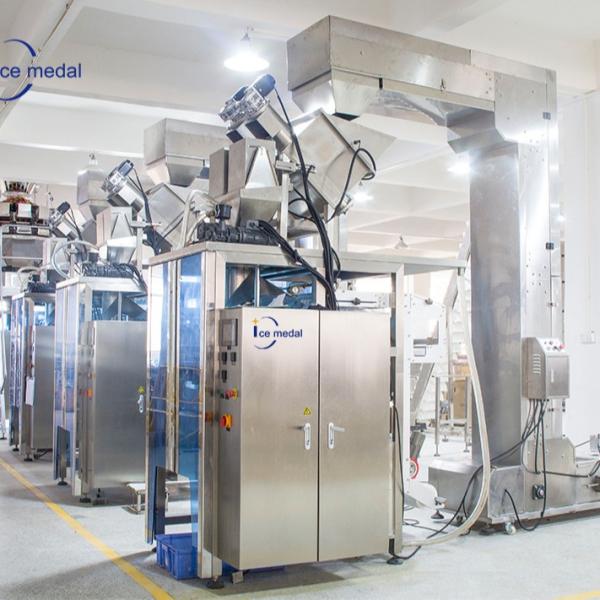

Commercial industrial Automatic Ice Packing Machine For Tube Ice
Parameters
| item | value |
| Applicable Industries | Hotels, Food Shop, Other |
| Condition | New |
| Place of Origin | China |
| Hunan |
| Brand Name | icemedal |
| Ice Shape | Cube |
| Voltage | AC220v,50hz,1ph |
| Power | 3KW |
| Dimension(L*W*H) | (L)1800*(W)1310*(H)2050mm |
| Weight | 750KG |
| Warranty | 1 Year |
| Key Selling Points | High-accuracy |
| Ice storage capacity | 500KG |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Marketing Type | New Product 2022 |
| Warranty of core components | 1.5 years |
| Core Components | Motor, PLC |
| Compressor brand | Other |
| Application | Industrial |
| Product Model | IMP-720-A |
| Air consumption | 0.65Mpa, 2.5m³/ min |
| Bag making length | 100-500mm |
| Bag making width | 180-350mm |
| Maximum outer diameter | max.360mm |
| Packing speed | 20bags/min |
| Packaging film thickness | 0.04-0.08mm |
| Power supply power | 220V, 50/60hz, 1ph |
| Overall dimension | (L) 1800* (W) 1310* (H) 2050mm |
| weight | 750Kg
|
Product Description
Packing Application: Automatic quantitative ice packing machine is
applicable to all kinds of regular, granular and block product
packaging,professional packaging tube ice, crushed ice, cube ice.
Packing Bags Material: For general ice packing machine, we choose
back sealingbag type, and we can choose composite film or PE film.
Performance Characteristics
1. The whole machine is made of stainless steel, with good rust
prevention ability, and the whole machine is stable and stable
2. Imported brand cylinders are used to ensure good sealing
performance and clear sealing lines of the bags, prevent air
leakage of the packaging bags and reduce the scrap rate.
3. The screw two head scale is used for weighing to pack the ice,
so that the ice can be pushed out through the screw, High weighing
accuracy and fast speed.
4. PLC control, imported driver, imported touch screen brand,
man-machine interface, high degree of automation, simple operation
procedures, and high touch screen sensitivity.
5. The external film placing mechanism is adopted to make it easier
and faster to replace the packaging film.
The material elevator and the finished product conveyor are made of
thick 304 food grade stainless steel, and the plastic part is also
made of food grade food plastic to ensure food safety.The structure
is simple and reasonable.
The twin-screw feeder is easy to operate, clean and sanitary, and
the parts in contact with materials can be disassembled
quickly,which is particularly convenient for cleaning; High speed
and precision, in line with production requirements.
Packing & Delivery
The packaging of our shipment is made of pearl cotton. First, wrap
the packaging machine around for protection, and then use
fumigation board for peripheral packaging to prevent damage during
transportation.
Our Company
Hunan Icemedal Refrigeration Equipment Co., Ltd. is a research and
development, production, sales and service in one of the
professional refrigeration equipment manufacturing enterprises. The
products mainly include fresh cold room, storage cold room, food
processing and sorting workshop, quick freezer storage room, Ice
Flake machine, ice cube machine, ice tube machine, ice block
machine.
All parts of our equipment from material selection to processing to
finished products must go through strict testing and quality
control to ensure the quality of equipment. Products are widely
used in food processing, aquatic products processing, large
supermarket chains, hotels, logistics, Mine Cooling, chemical, ice
storage and other fields. Products sell well in all cities of
China. Our products are also exported to Africa, the Middle East,
Southeast Asia, Australia, South America and other countries and
regions. It also brings us a wealth of experience and valuable data
to improve our products, so that our products in different
environmental conditions can be sustained and stable operation.
