Industrial 24000m3/H Water Air Cooled Chiller Unit 65kw Cooling Capacity

Hunan Icemedal Refrigeration Equipment Co., Ltd.
Contact Now
    Buy cheap Industrial 24000m3/H Water Air Cooled Chiller Unit 65kw Cooling Capacity from wholesalers

    Buy cheap Industrial 24000m3/H Water Air Cooled Chiller Unit 65kw Cooling Capacity from wholesalers
    • Buy cheap Industrial 24000m3/H Water Air Cooled Chiller Unit 65kw Cooling Capacity from wholesalers

    Industrial 24000m3/H Water Air Cooled Chiller Unit 65kw Cooling Capacity

    Ask Lasest Price
    Brand Name : OYRR
    Supply Ability : 200 Set/Sets per Month
    Price : $5,250.00/sets 1-4 sets
    Model Number : OY-R65AWFM/T
    Certification : ISO9001
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : ≤1 Set 35 Days
    • Product Details
    • Company Profile

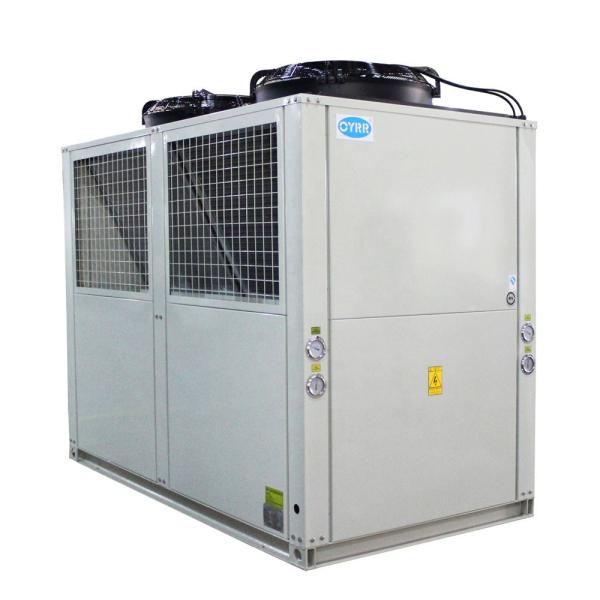

    Industrial 24000m3/H Water Air Cooled Chiller Unit 65kw Cooling Capacity

    Industrial 24000m3/H Water Chiller Machine Air Cooled Chiller Unit

    Product Description

    Unit features:

    1. Compact structure

      Compact structure which has small shape and the unit is easy to install, maintain and debug.

    2. Famous brand accessories

      Refrigeration system mainly adopt the well-known brand products, such as high-performance compressor, electric heating tube, the electrode humidifier, high efficiency low noise centrifugal fan, axial flow fan, etc., with stable and reliable performance.

    3. multi-protection

      Unit is equipped with multiple safety protections, such as the high and low voltage, compressor blower overload, the insufficient cooling water discharge current, electric heating temperature is too high, humidification, etc., to ensure its safe and reliable

    4. special handling

      According to the specific requirements of application, the unit can make explosion-proof and anticorrosive processing which can be widely used in petroleum, chemical industry, metallurgy, military industry, pharmaceutical industry, etc

      Industrial 24000m3/H Water Air Cooled Chiller Unit 65kw Cooling CapacityIndustrial 24000m3/H Water Air Cooled Chiller Unit 65kw Cooling CapacityIndustrial 24000m3/H Water Air Cooled Chiller Unit 65kw Cooling Capacity

    型号 ModelOY-R65AWFM/TOY-R130AWFM/T
    制冷剂 RefrigerantR410AR410A
    名义制冷量 Rated Cooling CapacityKW6.5132
    名义制热量 Rated Heating CapacityKW71.5141
    输入功率
    Input Power
    制冷 KW Cooling20.241.1
    制热 KW Heating21.542.5
    运转电流
    Running current
    制冷 A Cooling35.874.6
    制热 A Heating38.175.1
    电源 Power Supply380V/3N/50Hz
    机组接入电源线 Unit access power cord3*16mm+2*2.5㎡3*35mm+2*2.5㎡
    保护装置 Protection Device逆相保护,缺相保护,过流保护,高低压保护,低温保护,水流保护
    phase Reversion protection, phase lack protection, overload current protection, high & low voltage protection, low temperature protection, water flow protection
    制冷回路 Number of Refrigeration Circuit2
    能量控制 % Capacity Control0,50,100
    超片换热器
    Super Sheet Heat Exchanger
    类型 Type铜管穿亲水波纹铝片 Copper tube through hydrophilic corrugated aluminum sheet
    风量 m³/h Airflow2400048000
    风机数量 Number of Fans2
    水侧换热器
    Water-side heat exchanger
    类型 Type壳管式 Shell and Tube Type
    水侧最高承压 Mpa
    Water Side max Pressure
    1
    进出口管径 in
    Dia of pipe(inch)
    DN65(内牙)DN65(法兰)
    冷冻水进/出水温度 ℃
    Chilled water inlet/outlet temperature
    12/7
    热水进/出水温度 ℃
    Hot water inlet/outlet temperature
    40/45
    水流量 m³/h
    Chilled Water Flow
    11.222.7
    水压降 Kpa
    Water pressure drop
    3041
    运转噪音 dB(A) Running noise6573
    整机重量 kg Total Weight6651112
    运行重量 kg Running Weight7251210
    机组尺寸 L*W*H Unit Dimensions2050*1050*22502415*1250*2460
    company profile

    Industrial 24000m3/H Water Air Cooled Chiller Unit 65kw Cooling Capacity

    Hunan Icemedal Refrigeration Equipment Co., Ltd. is a research and development, production, sales and service in one of the professional refrigeration equipment manufacturing enterprises. The products mainly include fresh cold room, storage cold room, food processing and sorting workshop, quick freezer storage room, Ice Flake machine, ice cube machine, ice tube machine, ice block machine.

    All parts of our equipment from material selection to processing to finished products must go through strict testing and quality control to ensure the quality of equipment. Products are widely used in food processing, aquatic products processing, large supermarket chains, hotels, logistics, Mine Cooling, chemical, ice storage and other fields.

    Patent

    Industrial 24000m3/H Water Air Cooled Chiller Unit 65kw Cooling Capacity

    production field

    Industrial 24000m3/H Water Air Cooled Chiller Unit 65kw Cooling Capacity

    dispatch procedure

    Industrial 24000m3/H Water Air Cooled Chiller Unit 65kw Cooling Capacity

    buyer guidelines

    Authentic guaranteed:

    Our company is a refrigeration equipment manufacture with our R&D and designing team, we can provide refrigeration system service, we focus on refrigeration industry for many years, we ensure all equipment are original and without defect, also meet all technical standards and specifications put forward by buyers; all material and parts meet all technical standards and specifications put forward by buyers.


    Delivery:

    Delivery time: 25 working days after the factory received the advance.

    Delivery place: the factory

    The factory will supply related technical documents.


    Modes of transport:

    Can choose one way:

    1.The seller can charge the transport by written authorization by buyer. The seller manage the transportation and insurance,and ship to the place appointed by the buyer,all costs borne by the buyer,otherwise, risk transfer to the buyer after the goods leaving the factory.

    2.The buyer arrange the transportation,all expense and risks borne by the buyers.
