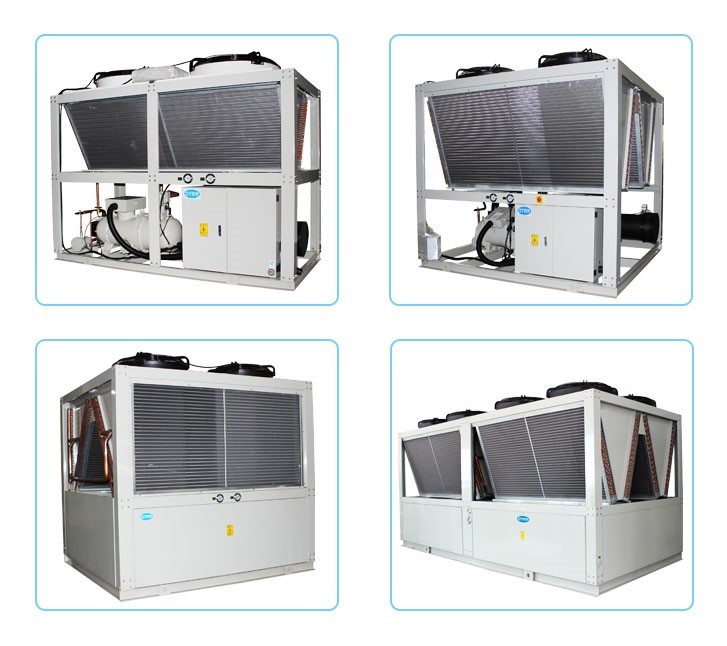

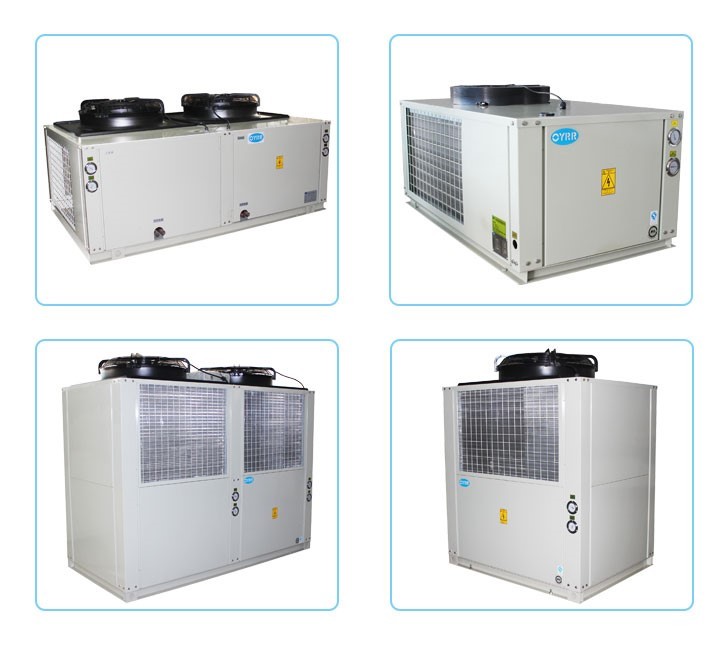

Product Overviews
Main Features:
1. Tempreture and Heat Recovery
Not just Chiller unit offer 7℃-degree chilled water, We will
considerate the completed project, including the energy saving,
Heat recovery (30% waste heat from compressor) can offer 55℃ hot
water for free. Use electrical valve work with VFD water pump;
2. Automatic complete protection
Water shortage protection, high/low voltage protection,
anti-freezing protection, overload protection, overheat protection
and oil level protection ensure high reliability and stability.
3. Excellent Design
OYRR industrial chiller use Self-made shell and tube heat
exchanger, Fin type heat exchanger.
Unique M-shaped design, inner grooved & patent sawtooth design and
hydrophilic aluminum fin guarantee efficient heat exchange between
the air side exchanger and ambient air.
Our heat exchanger department do it step by step, 100% ensure the
quality.
4. Application:
Hotel, Big restaurant: Water cooled chiller with heat recovery;
Commercial building, factory workshop, office…
| 型号 Model | OY- | R(K)7.5AWF | R(K)12AWF | R(K)20AWF | R(K)25AWF | R(K)30AWF | R(K)40AWF | R(K)50AWF | R(K)65AWF |
名义制冷
Rated Cooling | 制冷量
Capacity | ×1000kcal/h | 6.4 | 10.3 | 17.2 | 21.7 | 25.8 | 34.4 | 43 | 55.9 |
| KW | 7.5 | 12 | 20 | 25.2 | 30 | 40 | 50 | 65 |
功率
Input Power | KW | 2.33 | 3.72 | 6.21 | 7.85 | 9.32 | 12.38 | 15.53 | 20.19 |
电流
Rated current | A | 4.1 | 6.6 | 11 | 13.9 | 16.5 | 21.9 | 27.4 | 35.7 |
名义制热
Rated Heatting | 制热量
Capacity | ×1000kcal/h | 6.8 | 11 | 18.7 | 22.5 | 28.2 | 37 | 46.4 | 61.5 |
| KW | 7.9 | 12.8 | 21.8 | 26.2 | 32.8 | 43 | 54 | 71.5 |
功率
Input Power | KW | 2.38 | 3.85 | 6.56 | 7.88 | 9.87 | 12.92 | 16.24 | 21.51 |
电流
Rated current | A | 4.2 | 6.8 | 11.59 | 13.93 | 17.43 | 22.83 | 28.69 | 38 |
电源
Power Supply | 380V/3N/50Hz |
保护装置
Protection Device | 逆相保护,缺相保护,过流保护,高低压保护,低温保护,水流保护
phase Reversion protection, phase lack protection, overload current
protection, high & low voltage protection, low temperature
protection, water flow protection |
制冷回路
Number of Refrigeration Circuit | 1 | 2 | 1 |
制冷剂
Refrigerant | R410A |
能量控制 %
Capacity Control | 0, 100 | 0, 50, 100 | 0, 100 |
冷凝器
Condenser | 铜管穿波纹铝片
Ripple Aluminum Finsaround Copper Pipe |
风机功率 KW
Power Input of Fan | 0.24 | 0.24 | 0.65 | 1.13 | 1.13 | 1.85 | 1.13×2 | 1.13×2 |
蒸发器
Evaporator | 壳管式 Shell-and-Tube Type |
水倒悬最高承压 Mpa
Water Side max Pressure | 1 |
蒸发器进出口管径 in
Dia of pipe to Evaporator(inch) | 1-1/2''(内牙) | 1-1/2''(内牙) | 1-1/2''(内牙) | 1-1/2''(内牙) | 2''(内牙) | 2''(内牙) | 2''(内牙) | 2-1/2''(内牙) |
水流量 m³/h
Chilled Water Flow | 21 | 34 | 57 | 72 | 86 | 115 | 143 | 186 |
蒸发器水压降 Kpa
Evaporator Water pressure drop | 13 | 14 | 17 | 23 | 28 | 30 | 28 | 30 |
运转噪音 dB(A)
Running noise | 61 | 61 | 61 | 63 | 63 | 65 | 65 | 65 |
整机重量 kg
Total Weight | 120 | 150 | 330 | 360 | 405 | 485 | 625 | 645 |
机组尺寸
Unit Dimensions | 长 L | mm | 1050 | 1050 | 1050 | 1050 | 1200 | 1250 | 2200 | 2050 |
| 宽 W | mm | 800 | 800 | 1040 | 1040 | 1040 | 1100 | 1040 | 1050 |
| 高 H | mm | 1150 | 1150 | 1750 | 1750 | 1750 | 1750 | 1750 | 2250 |
| 型号 Model | OY- | R(K)65AWF/T | R(K)75AWF/H | R(K)100AWF/F | R(K)130AWF/T | R(K)195AWF/H | R(K)260AWF/F | R(K)325AWF/V | R(K)390AWF/S |
名义制冷
Rated Cooling | 制冷量
Capacity | ×1000kcal/h | 55.9 | 64.5 | 85.7 | 113.5 | 167.7 | 223.6 | 279.4 | 340.5 |
| KW | 65 | 75 | 99.7 | 132 | 195 | 260 | 325 | 396 |
功率
Input Power | KW | 20.25 | 23.29 | 30.96 | 40.99 | 60.56 | 80.75 | 100.93 | 122.98 |
电流
Rated current | A | 35.8 | 41.2 | 54.7 | 72.4 | 107 | 142.7 | 178.3 | 217.3 |
名义制热
Rated Heatting | 制热量
Capacity | ×1000kcal/h | 61.5 | 71 | 94.3 | 124.9 | 184.5 | 246 | 307.5 | 374.7 |
| KW | 71.53 | 82.5 | 109.7 | 145.2 | 214.6 | 286.1 | 357.6 | 435.7 |
功率
Input Power | KW | 21.52 | 24.83 | 33 | 41.7 | 64.55 | 86.07 | 107.59 | 131.09 |
电流
Rated current | A | 38.02 | 43.86 | 58.31 | 77.2 | 114.05 | 152.06 | 190.08 | 231.61 |
电源
Power Supply | 3φ/380V/50Hz |
保护装置
Protection Device | 逆相保护,缺相保护,过流保护,高低压保护,低温保护,水流保护
phase Reversion protection, phase lack protection, overload current
protection, high & low voltage protection, low temperature
protection, water flow protection |
制冷回路
Number of Refrigeration Circuit | 1 | 2 | 1 |
制冷剂
Refrigerant | R410A |
能量控制 %
Capacity Control | 0, 100 | 0, 33, 66, 100 | 0, 25, 50, 75 100 | 0, 50, 100 | 0, 33, 66, 100 | 0, 25, 50, 75 100 | 0, 20, 40, 60, 80, 100 | 0, 16, 32, 50, 68, 85, 100 |
冷凝器
Condenser | 铜管穿波纹铝片
Ripple Aluminum Finsaround Copper Pipe |
风机功率 KW
Power Input of Fan | 1.13×2 | 1.4×2 | 1.13×3 | 2.2×2 | 1.13×6 | 1.13×8 | 1.13×10 | 1.13×12 |
蒸发器
Evaporator | 壳管式 Shell-and-Tube Type |
水倒悬最高承压 Mpa
Water Side max Pressure | 1 |
蒸发器进出口管径 in
Dia of pipe to Evaporator(inch) | 2-1/2''(内牙) | 2-1/2''(法兰) | 2-1/2''(法兰) | 2-1/2''(法兰) | 3''(法兰) | 4''(法兰) | 4''(法兰) | 5''(法兰) |
水流量 m³/h
Chilled Water Flow | 11.2 | 12.9 | 17.1 | 22.7 | 33.5 | 44.7 | 55.9 | 68.1 |
蒸发器水压降 Kpa
Evaporator Water pressure drop | 30 | 32 | 32 | 41 | 52 | 63 | 74 | 86 |
运转噪音 dB(A)
Running noise | 65 | 68 | 71 | 71 | 71 | 71 | 72 | 72.5 |
整机重量 kg
Total Weight | 665 | 900 | 1080 | 1112 | 1995 | 2660 | 3325 | 3950 |
机组尺寸
Unit Dimensions | 长 L | mm | 2050 | 2800 | 2800 | 2415 | 3200 | 4250 | 5300 | 6350 |
| 宽 W | mm | 1050 | 1040 | 1040 | 1250 | 2050 | 2050 | 2050 | 2050 |
| 高 H | mm | 2250 | 1750 | 1750 | 2460 | 2250 | 2250 | 2250 | 2250 |
Company Information
Hunan Icemedal Refrigeration Equipment Co., Ltd. is a research and
development, production, sales and service in one of the
professional refrigeration equipment manufacturing enterprises. The
products mainly include fresh cold room, storage cold room, food
processing and sorting workshop, quick freezer storage room, Ice
Flake machine, ice cube machine, ice tube machine, ice block
machine.
Adhering to the “Integrity, win-win, enjoy life” concept, has been
committed to building modular boutique factory for customers, to
provide customers with solutions for profit replication, so as to
achieve our "Win-win" business value. Note: "integrity” refers to
the integrity of character, and the hard work. "Win-win” refers to
the maximization of customer profits, and our company has made
profits. "Enjoyable life” refers to the hard work, efforts, create
value, leisure time can enjoy life, family harmony.
Patent & Certificates
Buyer Guidelines
Authentic guaranteed:
Our company is a refrigeration equipment manufacture with our
R&D and designing team, we can provide refrigeration system
service, we focus on refrigeration industry for many years, we
ensure all equipment are original and without defect, also meet all
technical standards and specifications put forward by buyers; all
material and parts meet all technical standards and specifications
put forward by buyers.
Acceptance and debug:
1.Checking and acceptation
1.1 All goods arrived to the place appointed by the buyer, buyer
check the the external packing and signed for confirmation together
with freight; if the buyer has any objection, shall be make a
written report within 7days, otherwise, the buyer is viewed as
accepted the goods without objection.
1.2Test content is: if there is any damage with the device or the
package / device deformation is normal or not.
2.Debugging(Mainland China only, excluding Hong Kong, Macao and
Taiwan)
2.1 the seller is responsible for equipment installation and
debugging;
2.2 When device operating normal after completion of installation
and debugging,both sides make final
acceptance accordance with acceptance standards signed by them,
sign relevant debugging service list after debugging qualified.
Within one month after delivery, if buyer did not confirm delay
debugging with written form, Regarded as debugging qualified.
The warranty and maintenance
1.The article 1 mentioned price has included the debugging and
warranty service fee provided by the seller.
2.Equipment warranty period is 24 months since the factory
delivering goods. Equipment any warranty period for the defect, the
expert shall be the date of the buyer written notice send technical
personnel arrived at the scene within 48 hours for repair or free
replacement parts in accordance with the situation
3.If there is any trouble not caused by artificial factors during
the warranty period,within 48 hours since the seller received the
buyer's written report, the seller shall send technician to repair
or replace the parts freely.
About invoice
We provide VAT invoice, if you want to open a VAT special invoice,
shall provide the tax registration
certificate, "general taxpayer qualification certificate" and the
certificate has the latest year careful records(provide copy)
