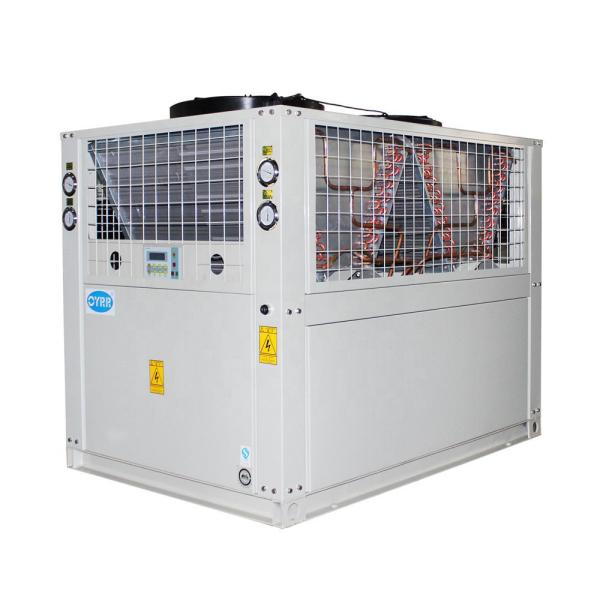

60 HP Industrial Air Cooled Water Chiller Modular R404a 65kw Floor Standing

Ask Lasest Price
Brand Name :	OYRR
Supply Ability :	200 Set/Sets per Month
Price :	$5,250.00/sets 1-4 sets
Model Number :	OY-R65AWFM/T
Certification :	ISO9001
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :	≤1 Set 35 Days

Add to Cart

Product Details
Company Profile

60 HP Industrial Air Cooled Water Chiller Modular R404a 65kw Floor Standing

Product Description

Unit features:

flexible design
There are many air delivery and return ways which facilitate matching combination and we have introduced new air function which can effectively improve the air quality. Therefore, this design is applicable to a variety of engineering environment.
Many specifications
This series have 20 kinds specification from 5 HP to 60HP with air cooled and water cooled ways which can meet demands of different customers and places. We also can customize according to customer's requirements
Compact structure
Compact structure which has small shape and the unit is easy to install, maintain and debug.
Famous brand accessories
Refrigeration system mainly adopt the well-known brand products, such as high-performance compressor, electric heating tube, the electrode humidifier, high efficiency low noise centrifugal fan, axial flow fan, etc., with stable and reliable performance.
multi-protection
Unit is equipped with multiple safety protections, such as the high and low voltage, compressor blower overload, the insufficient cooling water discharge current, electric heating temperature is too high, humidification, etc., to ensure its safe and reliable

型号 Model		OY-R65AWFM/T	OY-R130AWFM/T
制冷剂 Refrigerant		R410A	R410A
名义制冷量 Rated Cooling Capacity	KW	6.5	132
名义制热量 Rated Heating Capacity	KW	71.5	141
输入功率 Input Power	制冷 KW Cooling	20.2	41.1
	制热 KW Heating	21.5	42.5
运转电流 Running current	制冷 A Cooling	35.8	74.6
	制热 A Heating	38.1	75.1
电源 Power Supply		380V/3N/50Hz
机组接入电源线 Unit access power cord		316mm+22.5㎡	335mm+22.5㎡
保护装置 Protection Device		逆相保护,缺相保护,过流保护,高低压保护,低温保护,水流保护 phase Reversion protection, phase lack protection, overload current protection, high & low voltage protection, low temperature protection, water flow protection
制冷回路 Number of Refrigeration Circuit		2
能量控制 % Capacity Control		0,50,100
超片换热器 Super Sheet Heat Exchanger	类型 Type	铜管穿亲水波纹铝片 Copper tube through hydrophilic corrugated aluminum sheet
	风量 m³/h Airflow	24000	48000
	风机数量 Number of Fans	2
水侧换热器 Water-side heat exchanger	类型 Type	壳管式 Shell and Tube Type
	水侧最高承压 Mpa Water Side max Pressure	1
	进出口管径 in Dia of pipe(inch)	DN65(内牙)	DN65(法兰)
	冷冻水进/出水温度 ℃ Chilled water inlet/outlet temperature	12/7
	热水进/出水温度 ℃ Hot water inlet/outlet temperature	40/45
	水流量 m³/h Chilled Water Flow	11.2	22.7
	水压降 Kpa Water pressure drop	30	41
运转噪音 dB(A) Running noise		65	73
整机重量 kg Total Weight		665	1112
运行重量 kg Running Weight		725	1210
机组尺寸 LWH Unit Dimensions		205010502250	241512502460

company profile

60 HP Industrial Air Cooled Water Chiller Modular R404a 65kw Floor Standing

Patent

60 HP Industrial Air Cooled Water Chiller Modular R404a 65kw Floor Standing

production field

60 HP Industrial Air Cooled Water Chiller Modular R404a 65kw Floor Standing

dispatch procedure

60 HP Industrial Air Cooled Water Chiller Modular R404a 65kw Floor Standing

member's rights

Authentic guaranteed:

Our company is a refrigeration equipment manufacture with our R&D and designing team, we can provide refrigeration system service, we focus on refrigeration industry for many years, we ensure all equipment are original and without defect, also meet all technical standards and specifications put forward by buyers; all material and parts meet all technical standards and specifications put forward by buyers.

Delivery:

Delivery time: 25 working days after the factory received the advance.

Delivery place: the factory

The factory will supply related technical documents.

Acceptance and debug:

1. checking and acceptation

1.1 All goods arrived to the place appointed by the buyer, buyer check the the external packing and signed for confirmation together with freight; if the buyer has any objection, shall be make a written report within 7days, otherwise, the buyer is viewed as accepted the goods without objection.

1.2Test content is: if there is any damage with the device or the package / device deformation is normal or not.

2.Debugging(Mainland China only, excluding Hong Kong, Macao and Taiwan)

2.1 the seller is responsible for equipment installation and debugging;

The warranty and maintenance

1. The article 1 mentioned price has included the debugging and warranty service fee provided by the seller.

Equipment warranty period is 24 months since the factory delivering goods. Equipment any warranty period for the defect, the expert shall be the date of the buyer written notice send technical personnel arrived at the scene within 48 hours for repair or free replacement parts in accordance with the situation
If there is any trouble not caused by artificial factors during the warranty period,within 48 hours since the seller received the buyer's written report, the seller shall send technician to repair or replace the parts freely.

About packaging

Packaging by the factory, if buyer has special requirements, the buyer take charge the fee , and included in the total price.

About invoice

We provide VAT invoice, if you want to open a VAT special invoice, shall provide the tax registration

certificate, "general taxpayer qualification certificate" and the certificate has the latest year careful records(provide copy)
